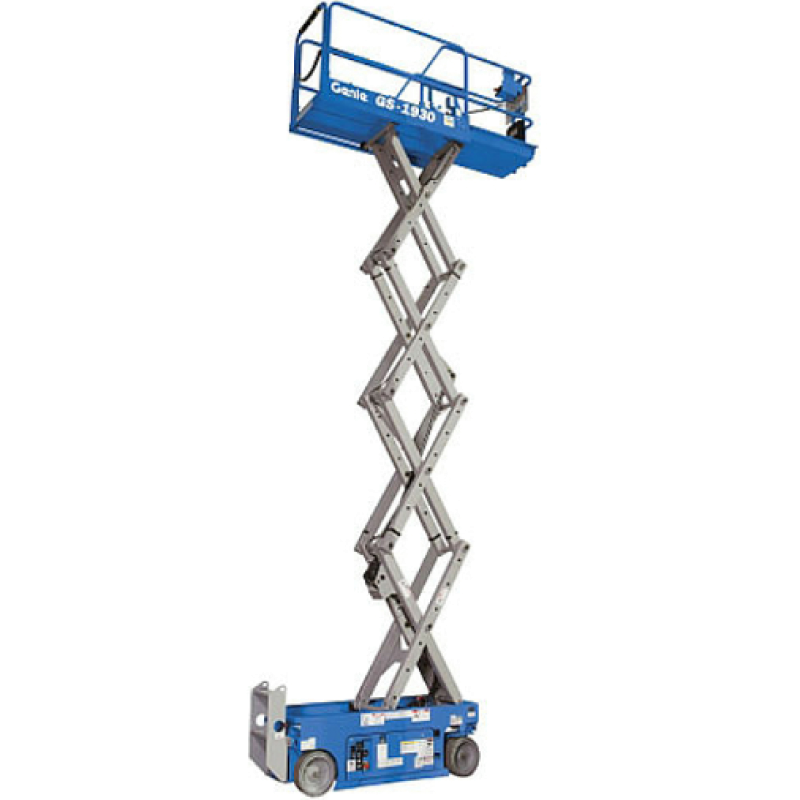

Genie GS- 1930 Scissor Lift
Platform Height: 19 ft
Platform Dimensions: 5 ft 4 in x 2 ft 5 in
Length (stowed): 6 ft
Width (stowed): 2 ft 6 in
Height (stowed): 6 ft 7 in
Weight: 2,702 lbs 3 ft Slide Out Extension

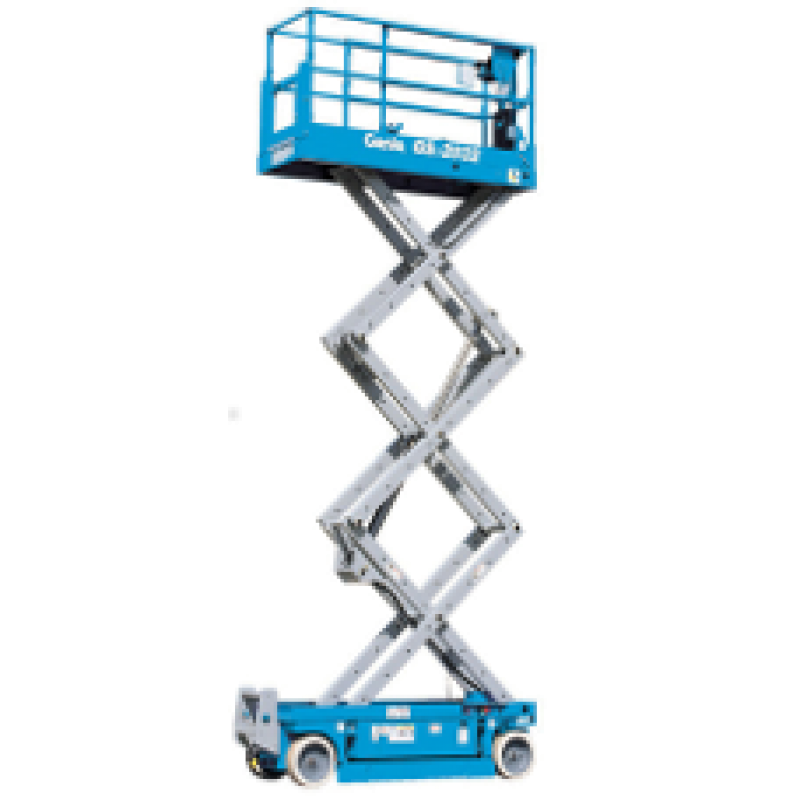

Genie GS- 2032 Scissor Lift
Platform Height: 20 ft
Platform Dimensions: 7 ft 5 in x 2 ft 8 in
Length (stowed): 8 ft
Width (stowed): 2 ft 8 in
Height (stowed): 6 ft 8 in
Weight: 3,574 lbs 3 ft Slide Out Extension

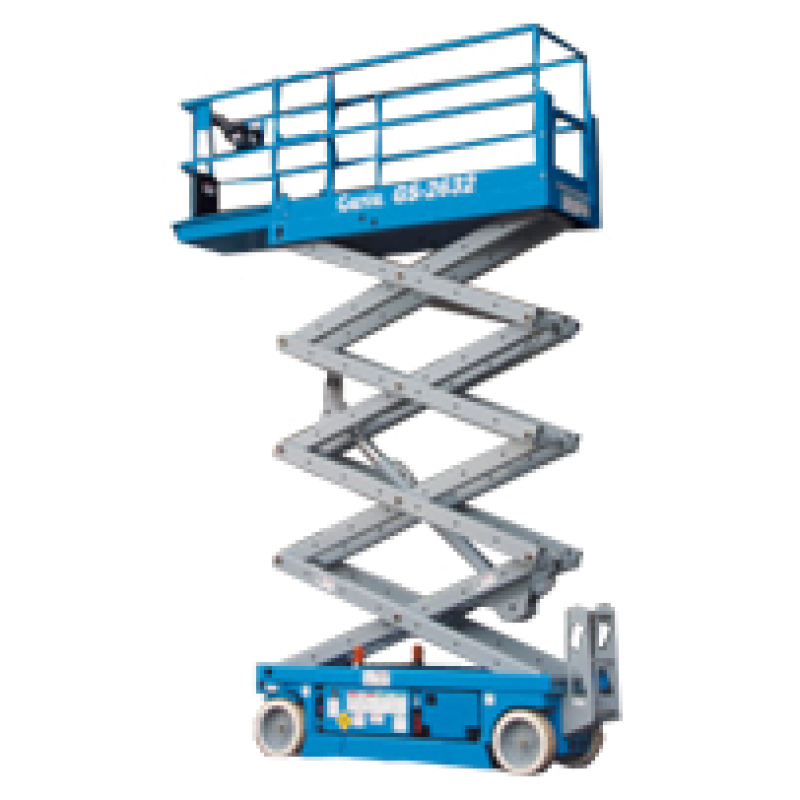

Genie GS- 2632 Scissor Lift
Platform Height: 26 ft
Platform Dimensions: 5 ft 4 in x 2 ft 5 in
Length (stowed): 6 ft
Width (stowed): 2 ft 6 in
Height (stowed): 6 ft 7 in
Weight: 2,702 lbs 3 ft Slide Out Extension

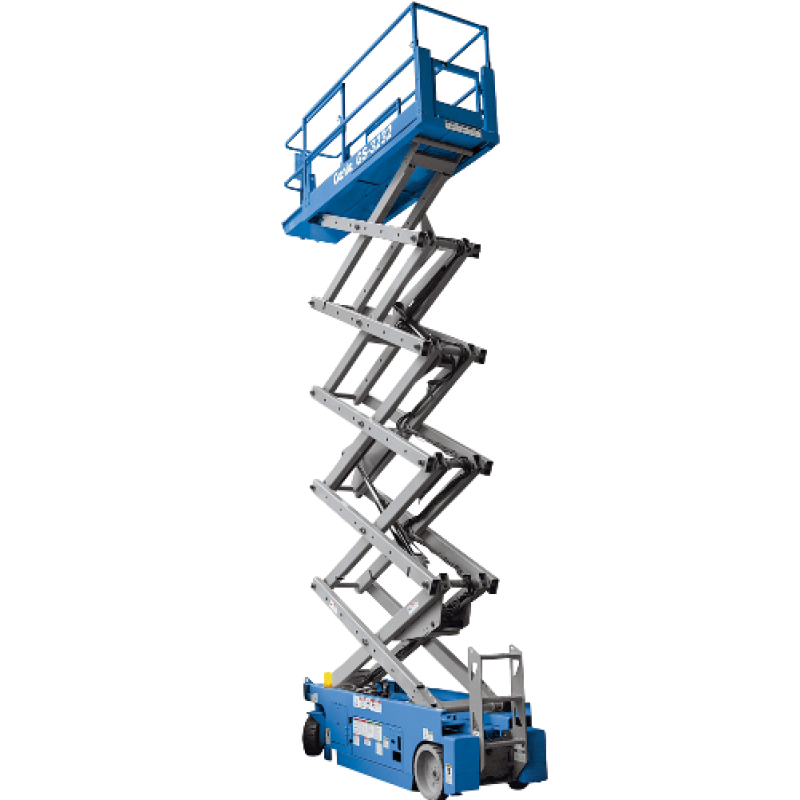

Genie GS- 3232 Scissor Lift
Platform Height: 32 ft
Platform Dimensions: 7 ft 5 in x 2 ft 8 in
Length (stowed): 8 ft Width (stowed): 2 ft 8 in
Height (fixed rails): 8 ft
Height (rails down): 6 ft 8 in
Weight: 5,185 lbs
3 ft Slide Out Extension
Genie Z-45/25
Platform Height: 45 ft 6 in
Platform Dimensions: 6 ft x 2 ft 6 in
Horizontal Reach: 25 ft
Length (stowed): 18 ft 3 in
Width (stowed): 5 ft 10.3 in
Height (stowed): 6 ft 7 in
Capacity: 500 lbs
Weight: 15,850 lbs 355 degree non- continuous rotation

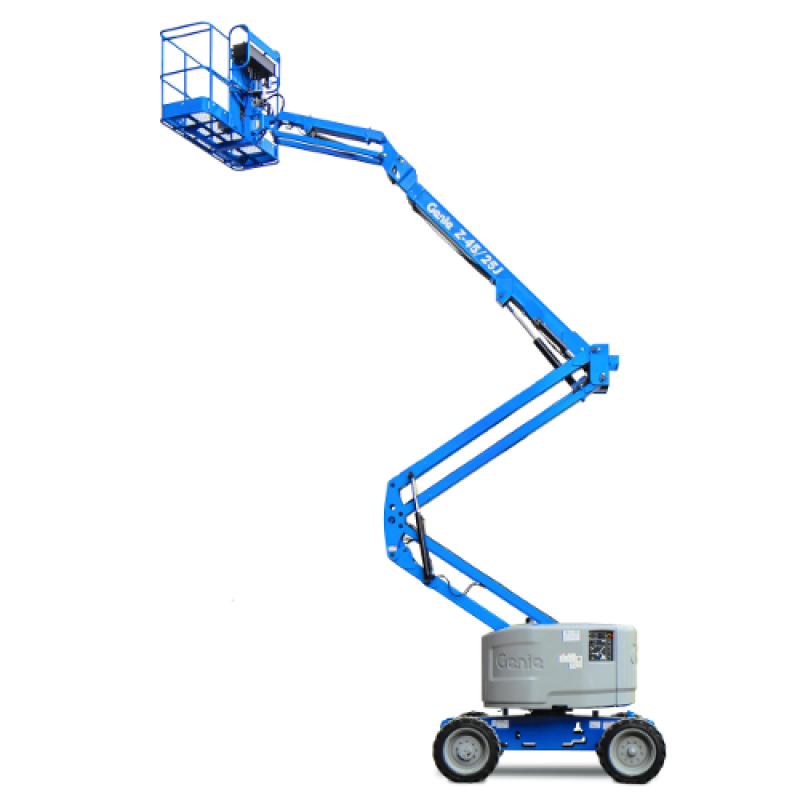

Genie Z-45/25J
Platform Height: 45 ft 9 in
Platform Dimensions: 6 ft x 2 ft 6 in
Horizontal Reach: 25 ft 1 in
Length (stowed): 22 ft 5 in
Width (stowed): 5 ft 10.3 in
Height (stowed): 6 ft 7 in
Capacity: 500 lbs
Weight: 16,800 lbs 355 degree non- continuous rotation
Genie Z- 30/20N RJ
Platform Height: 29 ft 2 in
Platform Dimensions: 3 ft 10 in x 2 ft 6 in
Horizontal Reach: 20 ft 6 in
Length (stowed): 17 ft 5 in
Width (stowed): 3 ft 11 in
Height (stowed): 6 ft 6.5 in
Capacity: 500 lbs
Weight: 14,220 lbs 355 degree continuous rotation
Haulotte 4527
Platform Height: 45 ft
Platform Dimensions: 4 ft 1 in x 2 ft 9 in
Horizontal Reach: 27 ft
Length (stowed): 20 ft 8 in
Width (stowed): 5 ft 6 in
Height (stowed): 6 ft 8 in
Capacity: 500 lbs
Weight: 4,200 lbs

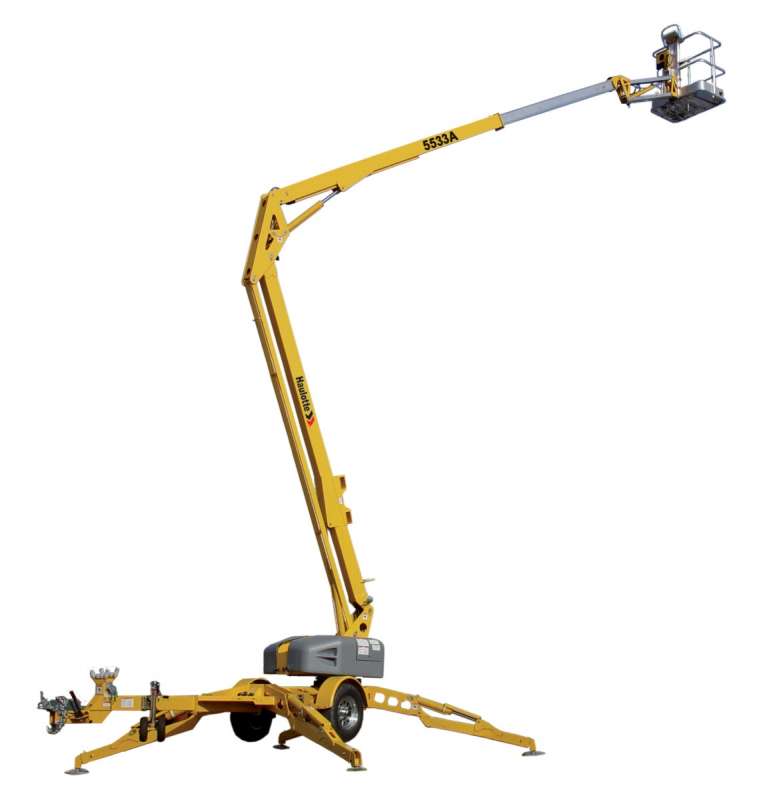

Haulotte 5533
Platform Height: 55 ft 3 in
Horizontal Reach: 33 ft 5 in
Length (stowed): 23 ft 8 in
Width (stowed): 5 ft 7 in
Height (stowed): 6 ft 9 in
Capacity: 500 lbs
Weight: 4,800 lbs
